Sweco Separator

iBulk® Sweco® Circular Separators are perfect for separating solids from liquids or sorting dry materials into different particle sizes. They are well-known for their reliability, durability, and high quality.

The circular separator is a vibratory screening device that vibrates around its center of mass. Eccentric weights create a particular vibrating motion on the upper and lower ends of the motion-generator shaft. These weights produce vibration in horizontal and vertical (tangential) planes. When the movements on these two planes are combined, it results in a spiral motion of the product over the screening area. The operator can adjust the speed and spiral pattern of material trajectory over the screen cloth for maximum throughput and screening efficiency of any screenable product.

This machine can screen particles as fine as 400 mesh (37 microns). Up to four screening decks can be added to obtain simultaneous classifications of up to five fractions.

The machine can be used to scalp products at very high capacities.

Installation

The iBulk Sweco circular screener has a very small footprint and doesn’t require special flooring or foundation. Sizes are available in 460, 610, 760, 1220, 1525 and 1830mm (18, 24, 30, 48, 60 and 72 inch) screen diameters.

Advantages

  • Renowned worldwide for its dependability, durability and quality

  • Ideal for separating solids from liquids

  • Effectively segregates dry materials into various particle sizes.

  • Simple and efficient design requires less kilowatts.

  • Other features include long screen life and ease with which screens may be changed.

  • Dust covers are also available for any completely sealed process, and Sweco screeners are available in a low-profile design.

Applications and Industries

The iBulk Sweco Separator is a great “all-rounder”, and it is most typically used in the following industries:

  • Food: sifting powdery materials and removing solids

  • Beverage

  • Paint

  • Recycling & Laundry, removing solids from wastewater

  • Processing

  • Pharmaceutical and Chemical (due to its quality and reliability)

  • Plastic

  • Minerals & chemical

  • Wet or dry … heavy or light … coarse or fine … hot or cold.

Supertaut Plus Screen

Superbond adhesive eliminates crevices and pits

The Superbond adhesive encapsulates and locks every wire into place, eliminating the crevices and pits found in typical spotwelded screens. These crevices are the breeding ground for bacterial growth and contamination.

Sealed tension ring eliminates cross-contamination

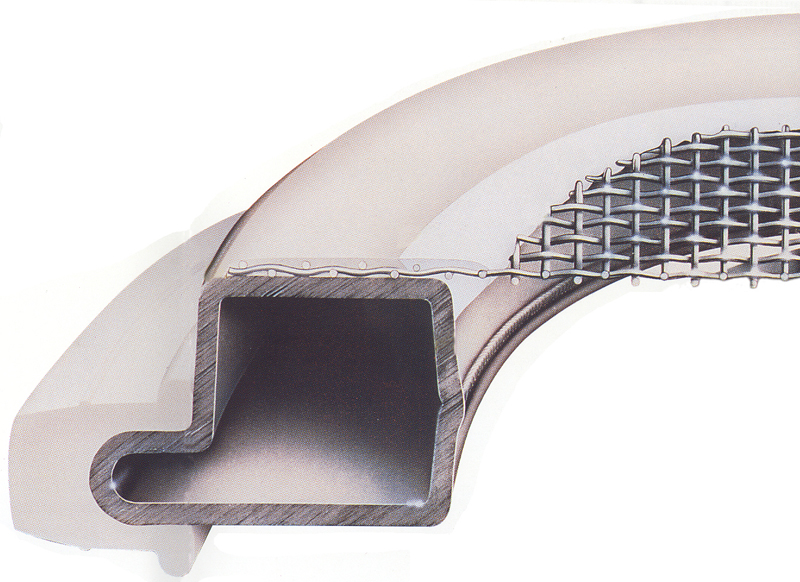

The foundation of every Supertaut plus screen is the tension support ring, rolled from stainless steel and seal welded for maximum strength. These lightweight, disposable rings do not allow material to enter the hollow interior, a common problem with older ring designs.

Uniform screen tension provides higher throughputs and longer screen life

Extra high, uniform screen tension built into every Supertaut Plus yields higher throughputs and longer screen life. Spotwelded screens, with lower and varied wire tension, are subject to premature fatigue failure.

Safer handling

The encapsulation process eliminates stray wires at the screen edge, which can injure plant employees.

FDA approved gasket

Each Supertaut Plus comes with a pre-attached FDA-approved neoprene gasket to speed screen changes.
